Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine
1. Characteristics:
This machine has four functions(soft loop handle bag, patch handle bag, poly draw handle bag,
die cut handle bag) which is combined with machinery, optics, electric and pneumatic.
The whole machine adopts microcomputer control, Panasonic servo motor control system which
can fix length of bag freely. Photoelectric tracker, accurate and stable, stopping automatically when
the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic
counting which can set count alarm. Automatic constant temperature make the sealing firm and
smooth.
a. Flexible soft loop handle and patch film feeding system, fully automatic.(patent)
b. Per-sealing knife, heated on double sides and strong for fusing, to make the bags without
deformation.
c. The sealing knife is made of high queality material and without deformation even heated
by high temperature.
d. Newly design of sealing knife top lift and turn over systerm
e. It’s designed by hesting punching, and it’s easy to cut off, the waster can fall off
automatically.
2. Main Technical Parameter:
Model | RJHQ-800 |
Length of bag(mm) | 250-730 |
Width of bag(mm) | 250-600 |
Top-folding edge(mm) | 50-75 |
Bottom inserting edge(mm) | 20-70 |
Speed of bag-making
(pcs/min) | Soft loop handle bag
Patch handle bag
Poly draw handle bag
Die cut handle bag | 60
60
70
70 |
Total power(kw) | 13 |
Weight(kg) | 3500 |
Overall Dimension(mm) | 8200*3100*1870 |
3. Spare parts
01 |
thermocouple |
3pcs |
0 |
cutter blade |
2boxes |
06 |
solid-state voltage regulator |
1pc |
09 |
level earth foot plate |
1set |
10 | )
silica gel oil (with one brush) |
1 bottle |
15 |
Switches, rotary knob: 2pcs each one |
4pcs |
16 |
Solid-state voltage regulator |
2pcs |
11 |
Rubber roll springs |
20pcs |
20 |
Power wire copper linker |
5pc |
21 |
Plastic belt |
30pcs |
03 | small proximity switch(24V) |
2pcs |
14 |
small electric relay (four feet touching points, and two feet touching points: 2 pcs each one) |
40pcs |
13 |
Heating pipe: (side-sealing cutter: 1pc, soft handle:2pcs,pre-heating blade:2pcs, hot piercing: 2pcs, patch: 2pcs) |
9pcs |
02 |
high temperature stick tape (PTEE high temperature heating cloth: 2 meters)(made in Japan) |
1roll |
12 |
windpipe ￠4,￠6,￠8 windpipe linker: 2 pcs for each one |
3meters |
01 |
tool (tool box: 1 pc, inner hexagonal spanner: 1 set, screwdriver: 2 pcs, oil pot: 1pc, 8—10,12—14,17—19 open and wrench: 1pc each one) |
1set |
07 |
skew correction device operation instructions |
1pc |
18 | inverter operation instructions book |
1pc |
19 |
Servo operation instructions book |
1pc |
17 |
Machine operation instructions book (with circuit diagram, gas circuit diagram) | 1pc |
Product Tags:
|
|

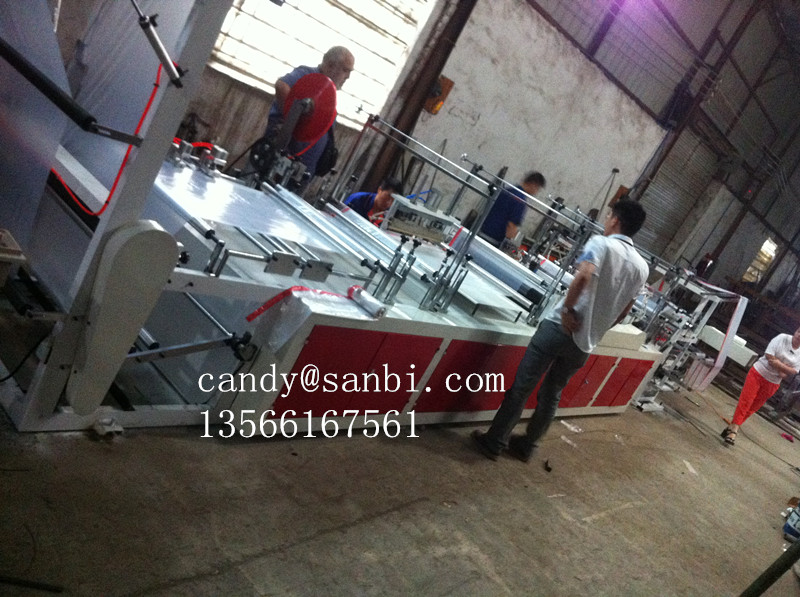

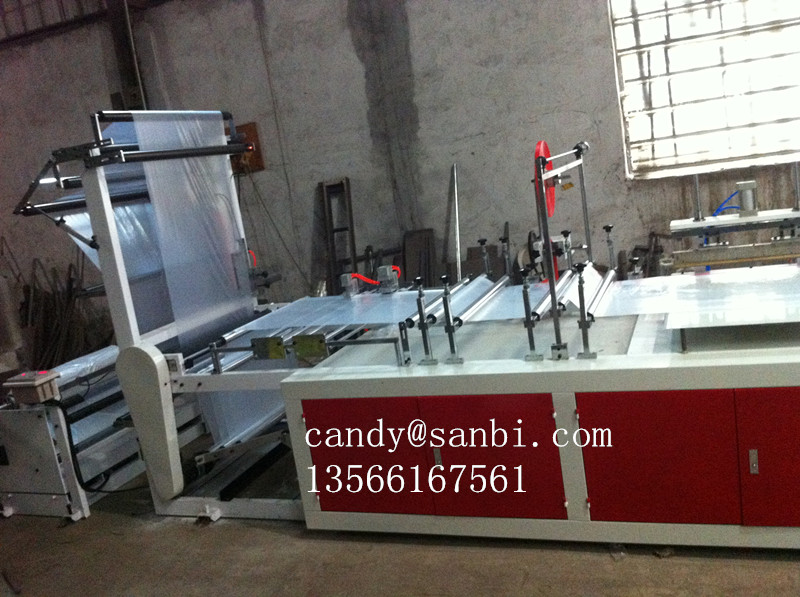

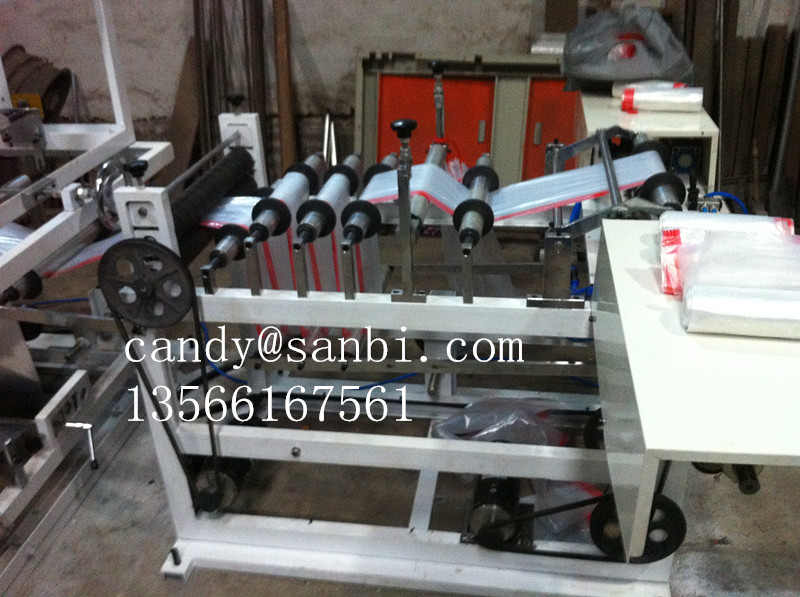

Multifunctional Plastic Bag Making Machine Fully Automatic Bag Making Machine Images
|
