SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set

Name: SJD50 Integrated Mini Type PE Blown Film Extrusion Machine Set
Brand: SANBI
Price: 6000 USD

Buy cheap SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set product

Brand Name : SANBI

Model Number : SJ-D50

Certification : CE , ISO9001

Place of Origin : China Mainland

MOQ : 2 sets

Price : (6000USD - 9000 USD) / SET

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 30 Set/Month

Delivery Time : around 30 work days

Packaging Details : standard wooden package

Color : orange

Raw material : HDPE,LDPE,LLDPE

Lift : Up and Down

Application : packing bags for food stuff,clothing,rubbish bag and vest ones

Condition : 2014 NEW

operate person : 1 person

Voltage : 380v

Contact Now

film blowing machine , film extruder , film extrusion machine , blown film machine , blown film extrusion machine , film making machine , plastic film blowing machine

SJ-D50 Integrated Mini TYPE PE Blown Film Extrusion Machine Set

Description:
SJ-D series Mini type film blowing machine is integrate all parts in one stage, it's easy to operate and save the space .
This model Was so popular by customers in YIWU Fair 2014 .

1	Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.
2	Hence it is sound in hardness,durable in corrosion resistance.
3	The specially-designed screw is of sound quality in plasticizing,which helps increase the prodution capacity.
4	It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE) and linear low density polytene(LLDPE).
5	It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones.

Technical Parameter:

Model	D50	D55
Diameter of Screw(mm)	φ 50	φ 55
Max. Width of Folded Film (mm)	100-600	200-800
Single-face Thickness of Film(mm)	0.01-0.10	0.01-0.10
Max. Extrusion(kg/h)	35	50
L/D	28: 1	28: 1
Power of Main Motor(KW)	7.5-11	11-15
Power of Traction Motor(KW)	1.1	1.1
Heating Power(KW)	11	13
Overall Dimension (mm)	3800× 1900× 3000	5500× 2100× 3500
Weight(T)	1.5T	2T

1	Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated
2	Fixed die device with standard air ring
3	Gear box: water cooling reducer, hard tooth surface #133
4	Single winder with air shaft 2 pcs
5	counter of metric
6	Main motor : CHINA brand motor With inverter control
7	Heating ring : aluminum casting
8	winder motor : torque motor
9	Embossing roller
10	Gusset device
11	UP and down device
12	Power supply 3phase 380v 50hz
13	Punmatic cylinder for controller top roller
14	With auto loader

Picture Description:

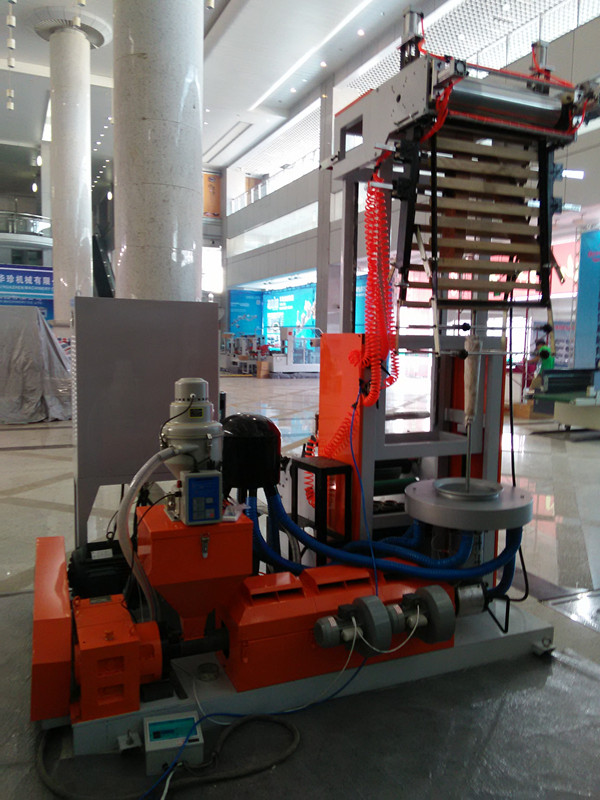

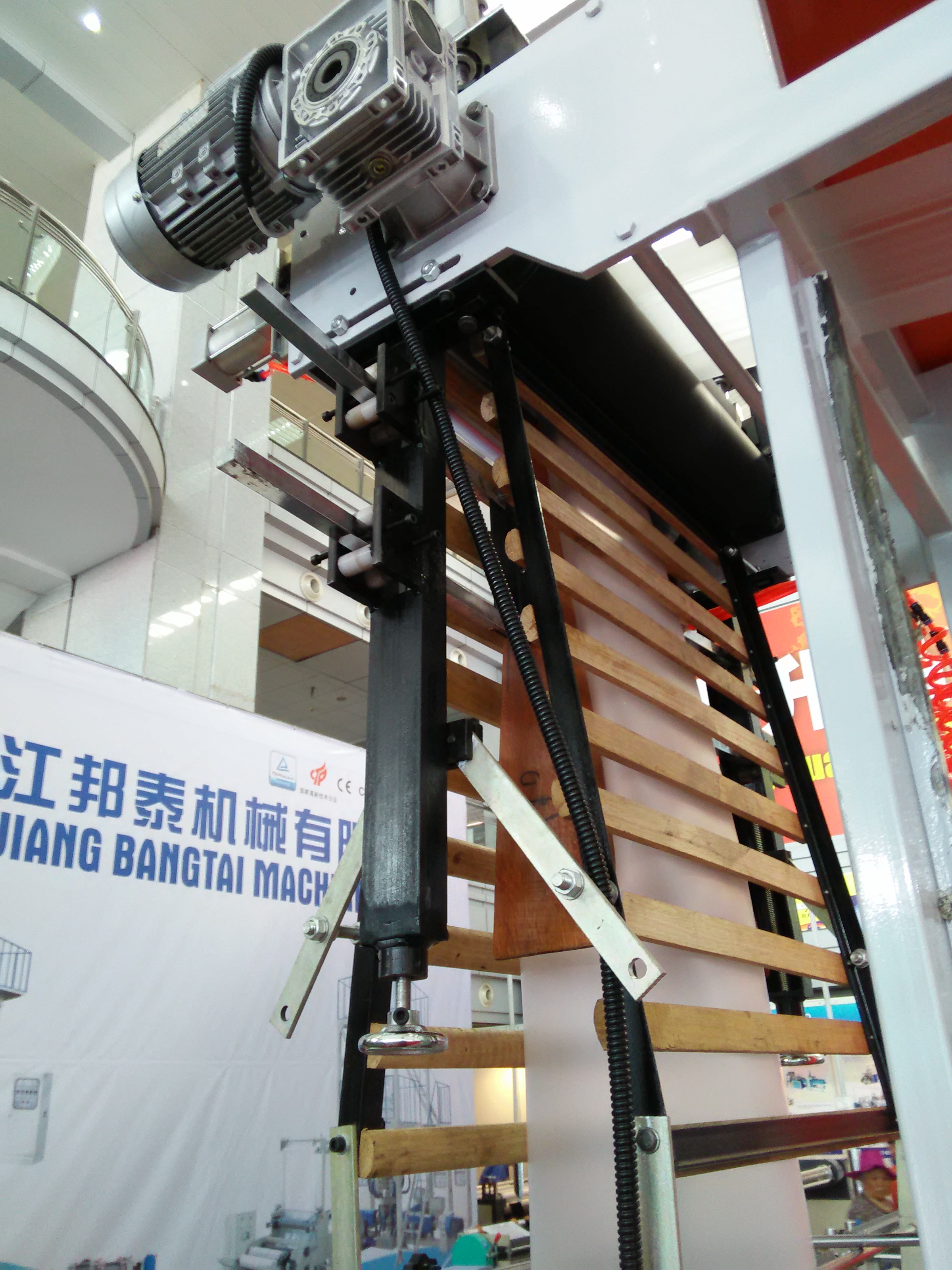

SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set

NOTE: Before send the inquiry , Please take minutes to read the following qustions :

Machine name	Specifications required
Film blowing machine	a.Max film width b.Which kind of materials? HDPE,LDPE,LLDPE,PP,PVE etc. c.Required output ?

For other machines,please contact us for details.

Product Tags:

plastic blow molding machine

plastic Blowing Machinery

SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set Images
